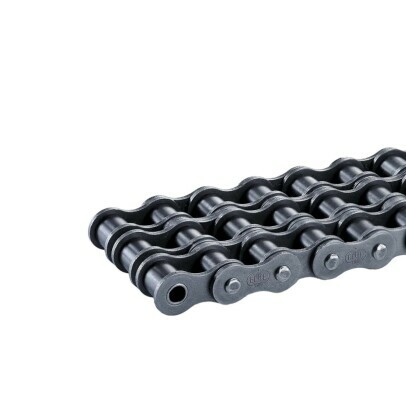

Roller chain triplex ANSI-60-3-ECOPLUS-DIN8188-5M-IWIS

Name: ANSI-60-3-ECOPLUS-DIN8188-5M-IWIS
Brand: IWIS
SKU: 219402
Price: 279.3 EUR
Availability: OutOfStock

Part number : ANSI-60-3-ECOPLUS-DIN8188-5M-IWIS

Description

The Roller Chain Triplex of type 60 of the brand IWIS known under the reference ANSI-60-3-ECOPLUS-DIN8188-5M-IWIS. It has a pitch 19 mm and is to the ISO 606 ANSI norm.

Your price: 279,30 € INCL. VAT

8 to 10 days (1 day ago )

Last departure in

Secure payment

Need help or advice?

+33.359.36.04.90

COMPLEMENTARY PRODUCTS

CHAIN BREAKER CT101-IWIS

Your price: 62,46 € INCL. VAT

Arrive dans 3 jours (1 day ago )

TECHNICAL DATA

BRAND

IWIS
N° EAN13

3616060999962
MATERIAL

Steel
TYPE

60
WEIGHT

22570 G
LUBRICATION

ECO-1
PACKAGING

5 meters
SERIES

GL
CHAIN STANDARDS

ISO 606 ANSI
ISO STANDARD BREAKING LOAD

93 KN
WEIGHT PER METER

4 KG
JOINT SURFACE

3 CM2
PITCH

19 MM
WIDTH BETWEEN INNER PLATES

12 MM
ROLLER DIAMETER

11 MM
AXIS DIAMETER

5 MM
OUTSIDE WIDTH INSIDE LINK

17 MM
PLATE THICKNESS INSIDE OUTSIDE

2,40/2,40
PLATE HEIGHT

18 MM
ADDITIONAL LENGTH

4 MM
NUMBER OF ROWS

3
NUMBER OF LINKS

131

Description

The Roller Chain Triplex of type 60 of the brand IWIS known under the reference ANSI-60-3-ECOPLUS-DIN8188-5M-IWIS. It has a pitch 19 mm and is to the ISO 606 ANSI norm.
