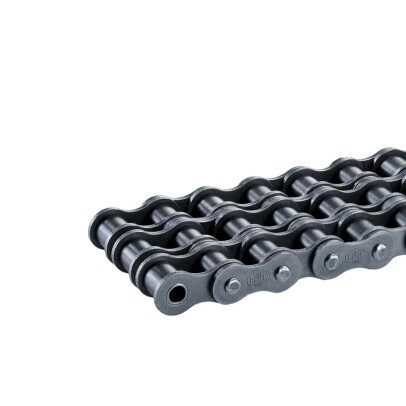

Roller Chain Triplex
Part number : ANSI-180-3-ELITE-DIN8188-5M-IWIS
Description
The roller chain triplex of type 180 of the brand IWIS known under the reference ANSI-180-3-ELITE-DIN8188-5M-IWIS. It has a pitch 57 mm and is to the 10 norm.
You can find all the information you need about our products in our expert's advice, by clicking here Here
8 to 10 days
Secure payment
Need help or advice?
+33.359.36.04.90
Description
The roller chain triplex of type 180 of the brand IWIS known under the reference ANSI-180-3-ELITE-DIN8188-5M-IWIS. It has a pitch 57 mm and is to the 10 norm.
You can find all the information you need about our products in our expert's advice, by clicking here Here
Secure payment
Need help or advice?
+33.359.36.04.90
| Brand | IWIS |
|---|---|
| Pitch | 57 mm |
| Weight | 199 g |
| Type | 180 |
| Axis diameter | 17 mm |
| number of rows | 3 |
| Chain standards | iso606ansi |
| Weight per meter | 39 kg |
| Lubrication | elidurplus |
| Plate height | 54 mm |
| Packaging | 5m |
| Roller diameter | 35 mm |
| Joint surface | 26 cm2 |
| ISO standard breaking load | 843 kN |
| Additional length | 9 mm |
| Width between inner plates | 35 mm |
| Outside width inside link | 50 mm |
The roller chain triplex of type 180 of the brand IWIS known under the reference ANSI-180-3-ELITE-DIN8188-5M-IWIS. It has a pitch 57 mm and is to the 10 norm.
