10B-3-SS-ELITE-5M-IWIS

10B-3-SS-ELITE-5M-IWIS

Compare product

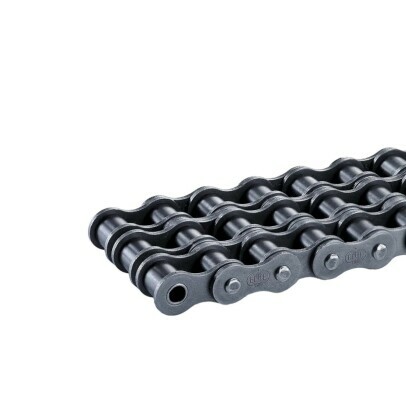

Roller chain triplex 10B-3-SS-ELITE-5M-IWIS

Part number : 10B-3-SS-ELITE-5M-IWIS

IWIS

Description

The Roller Chain Triplex of type 10B of the brand IWIS known under the reference 10B-3-SS-ELITE-5M-IWIS. It has a pitch 15 mm and is to the iso606bs norm.

Your price: 1 804,52 € INCL. VAT

8 to 10 days (1 day ago )

logo_delivery

Last departure in

product_sheet

product_sheet

product_sheet

product_sheet_padlock

Secure payment

Need help or advice?

+33.359.36.04.90

COMPLEMENTARY PRODUCTS

Triplex sprocket - 10B-3-20-X

TRIPLEX SPROCKET 10B-3-20-X

Your price: 39,04 € INCL. VAT

8 to 10 days (1 day ago )

Triplex sprocket - 10B-3-33-X

TRIPLEX SPROCKET 10B-3-33-X

Your price: 82,82 € INCL. VAT

8 to 10 days (1 day ago )

Triplex sprocket - 10B-3-8-X

TRIPLEX SPROCKET 10B-3-8-X

Your price: 9,95 € INCL. VAT

8 to 10 days (1 day ago )

Tendeur de montage de chaines - NR25-60-IWIS

TENDEUR DE MONTAGE DE CHAINES NR25-60-IWIS

Your price: 61,39 € INCL. VAT

8 to 10 days (1 day ago )

Chain Breaker - CT101-IWIS

CHAIN BREAKER CT101-IWIS

Your price: 62,46 € INCL. VAT

8 to 10 days (1 day ago )

Jauge d'usure de chaine - GAUGE10B-IWIS

JAUGE D'USURE DE CHAINE GAUGE10B-IWIS

Your price: 122,86 € INCL. VAT

1 parts in stock (1 day ago )

TECHNICAL DATA

BRAND

IWIS
N° EAN13

3616060999702
MATERIAL

STAINLESS STEEL
TYPE

10B
WEIGHT

13850 G
LUBRICATION

lubricantfree
PACKAGING

5 meters
SERIES

SS
CHAIN STANDARDS

iso606bs
ISO STANDARD BREAKING LOAD

42 KN
WEIGHT PER METER

2.77 KG
JOINT SURFACE

2 CM2
PITCH

15 MM
WIDTH BETWEEN INNER PLATES

9 MM
ROLLER DIAMETER

10 MM
AXIS DIAMETER

5 MM
OUTSIDE WIDTH INSIDE LINK

13 MM
PLATE THICKNESS INSIDE OUTSIDE

1,60/1,60
PLATE HEIGHT

14 MM
ADDITIONAL LENGTH

4 MM
NUMBER OF ROWS

3
NUMBER OF LINKS

166

Description

The Roller Chain Triplex of type 10B of the brand IWIS known under the reference 10B-3-SS-ELITE-5M-IWIS. It has a pitch 15 mm and is to the iso606bs norm.
