Roller Chain Triplex
Description

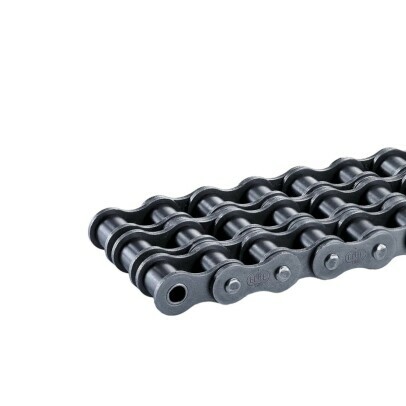

The roller chain triplex of type 10B of the brand IWIS known under the reference 10B-3-ELITE-DIN8187-5M-IWIS. It has a pitch 15 mm and is to the 9 norm.
You can find all the information you need about our products in our expert's advice, by clicking here Here
8 to 10 days
Need help or advice?
+33.359.36.04.90
Description
The roller chain triplex of type 10B of the brand IWIS known under the reference 10B-3-ELITE-DIN8187-5M-IWIS. It has a pitch 15 mm and is to the 9 norm.
You can find all the information you need about our products in our expert's advice, by clicking here Here
Need help or advice?
+33.359.36.04.90
Brand | IWIS |
---|---|
Pitch | 15 mm |
Weight | 13 850 g |
Material | STAINLESS STEEL |
Type | 10B |
Axis diameter | 5 mm |
number of rows | 3 |
Chain standards | iso606bs |
Series | SS |
Weight per meter | 2,77 kg |
Lubrication | elidurplus |
Plate height | 14 mm |
Packaging | 5m |
Roller diameter | 10 mm |
Joint surface | 2 cm2 |
ISO standard breaking load | 66 kN |
Additional length | 4 mm |
Width between inner plates | 9 mm |
Outside width inside link | 13 mm |
The roller chain triplex of type 10B of the brand IWIS known under the reference 10B-3-ELITE-DIN8187-5M-IWIS. It has a pitch 15 mm and is to the 9 norm.
